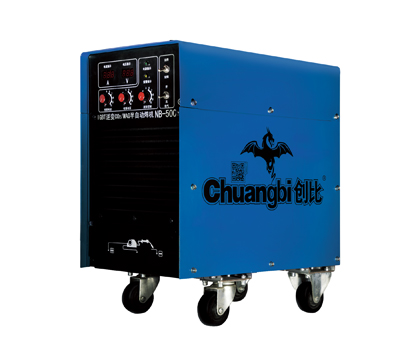

NB-500
NB-500
Product Presentation
Digital control system,welding parameter preset and real-time display
Digital control system,welding parameter preset and real-time display
High performance multifunction power source(MMA/MIG/MAG/Lift TIG)
Synergic control welding parameter,waveform control,stable welding arc
Parameters memory function
| NB-500 technical parameters | ||||
| Model | MAGIC MIG-500 | MAGIC MIG-500E | ||
| Power Supply Voltage(V) | 3～380/415/440±10% | |||
| Frequency(HZ) | 50/60 | |||
| MIG | TIG | MMA | ||
| Rated Input Power(KW) | 27.5 | 21 | 27.9 | |
| Rated Input Current(A) | 35.5 | 27.2 | 36 | |
| Duty Cycle(40℃ 10min) | 60P0A | |||
| 100@0A | ||||
| No Load Voltage(V) | 76 | |||
| Welding Current Range(A) | 30～500 | 20～500 | 20～500 | |
| Welding Voltage Range(V) | 14.5～44 | 10.8～30 | 20.8～40 | |
| Efficiency(%) | 87 | |||
| Power Factor | 0.85 | |||
| Wire Diameter(mm) | 0.8/0.9/1.0/1.2/1.6 | |||
| Net Weight(kg) | 43.5 | |||
| Dimensions(mm) | 620×310×535 | |||
| Protection Class | IP23 | |||
| Insulation Class | F | |||
| Cooling | AF | |||
